How to create Skeleton Loading in Bubble?

How to create Skeleton Loading in Bubble?

Step by step process to implement skeleton loading repeating group in bubble.io

What is skeleton loading?

Skeleton loading is a placeholder component that mimics the structure of the application’s content while data is being loaded. Instead of showing a blank screen or a simple spinner, one can display a greyed-out or animated placeholder resembling the content that will soon appear. This gives the impression that something is happening in the background and makes the wait feel shorter.

Skeleton loading has become a popular UX feature across applications, helping to improve user experience by indicating that content is being loaded while minimizing frustration caused by blank screens.

Here is how you can create one in bubble.io:

Step 1: Decide the place for skeleton loading

Generally, don’t use skeleton loading for the whole page but identify the components that are taking time in loading the data. In most cases, it is a repeating group loading data on page load.

Step 2: Prepare the final output that will be seen after the data is loaded

Here in this example, this is how the final Repeating Group will look like with data!

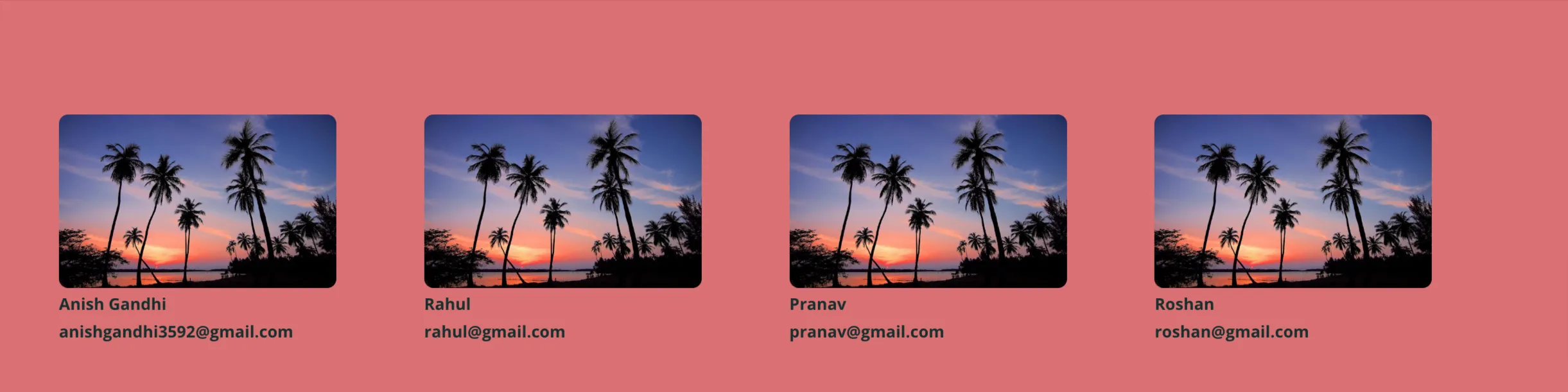

Final output with data in Repeating Group

Now let’s see this Repeating Group’s setup:

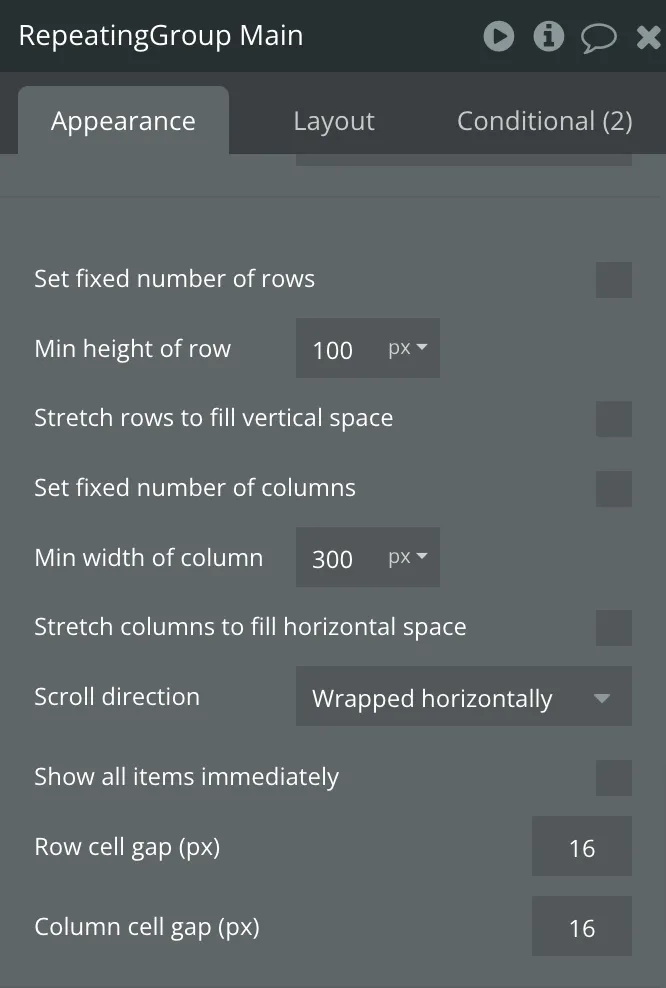

Repeating Group Main Property Setup

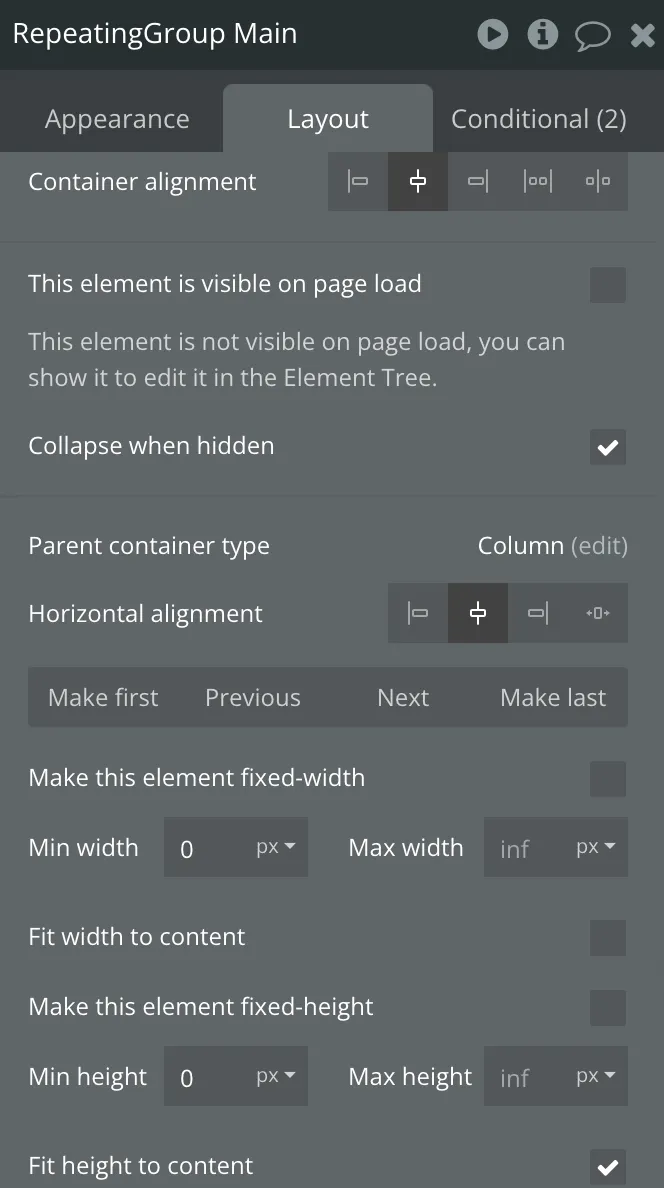

Repeating Group Main layout Setup

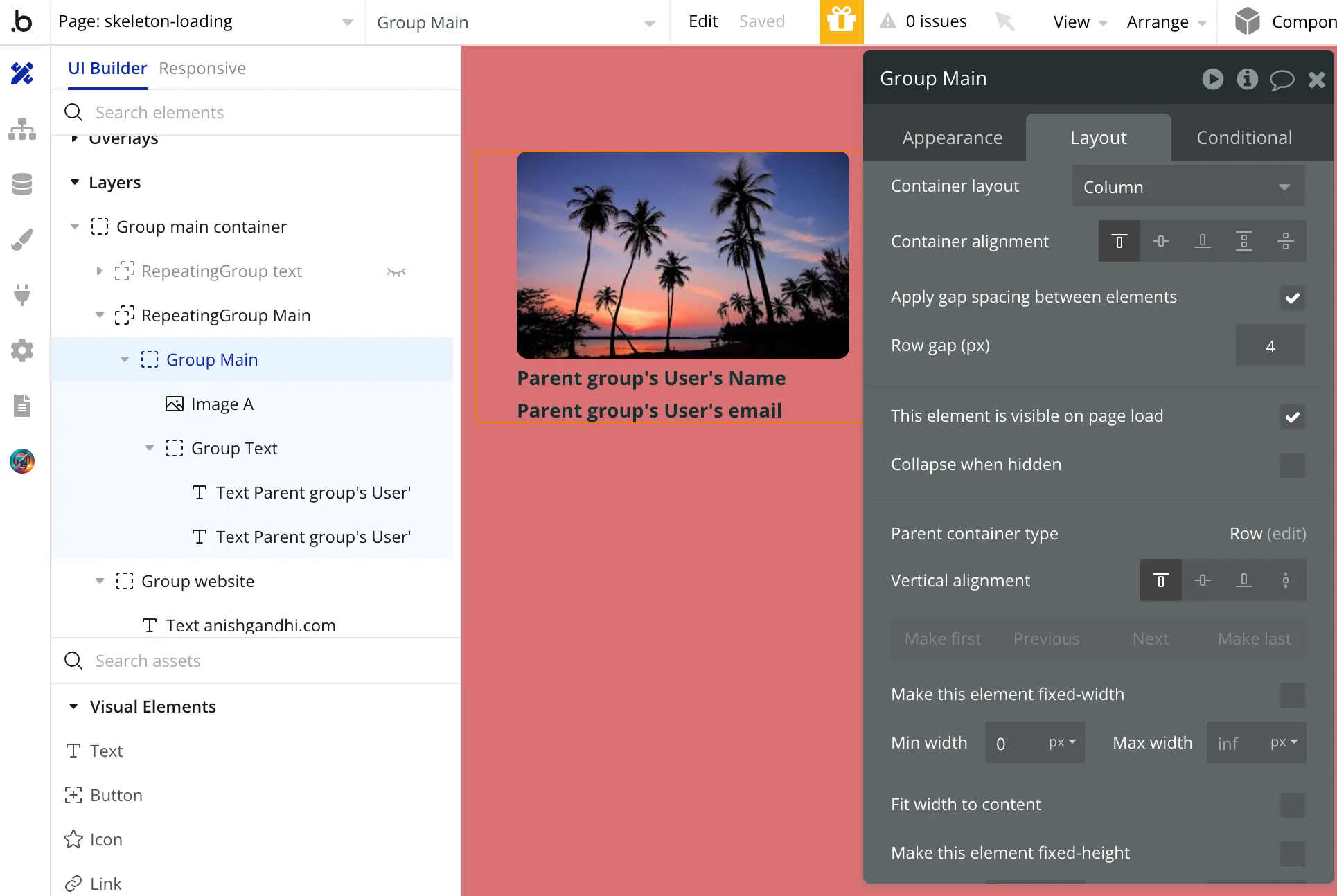

Group inside output repeating group setup

Once the output Repeating Group Setup with its component and its layout, it is time to go for the next step.

Step 3: Setup Skeleton Loading Repeating Group

Duplicate the output repeating group without its child groups and add the HTML element in place of Group main. Element tree will look like shown below:

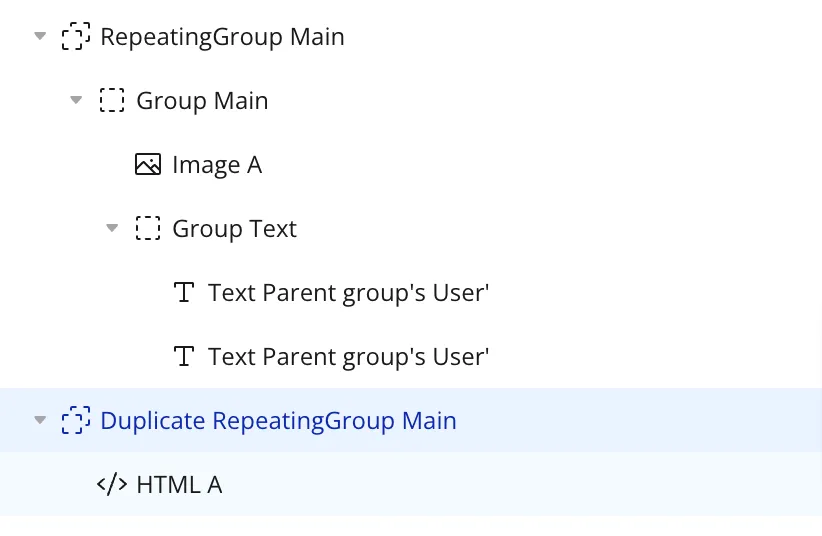

Skeleton Loading Repeating Group element tree

Now this Duplicate Repeating Group’s data source will be arbitrary text split by(,), and the data type will be text. Here is what it will look like:

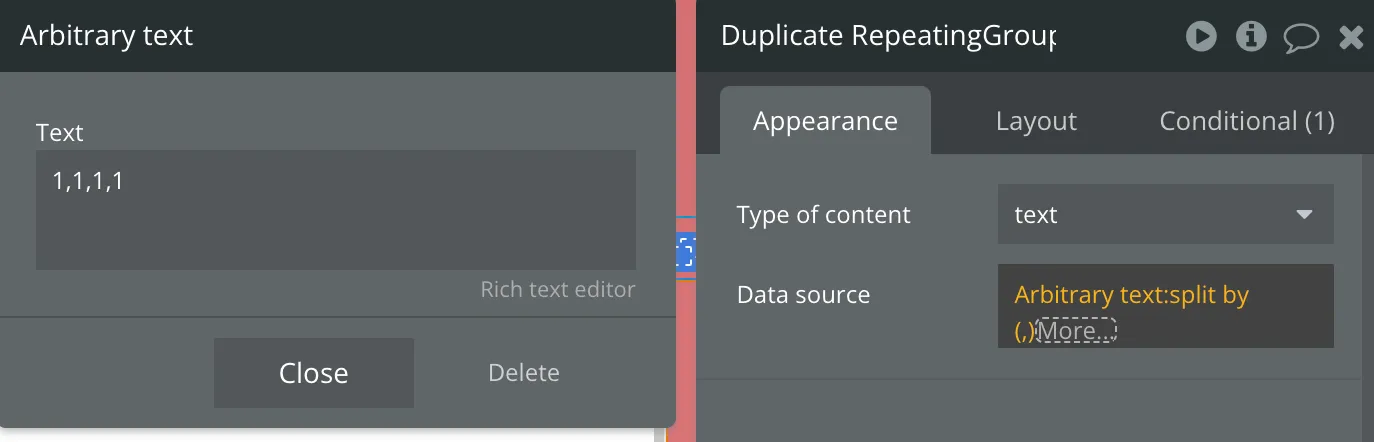

Data source of repeating group

Now as per my output Repeating Group, I want to show one row only as a skeleton loading that is why I have used 4 times 1. If I wanted to show 2 rows, I would have used 1,1,1,1,1,1,1,1 as arbitrary text split by(,). This will vary as per your output repeating group setup.

Now, About the HTML element that we placed inside this skeleton Repeating Group or Duplicate Repeating Group. Here is the CSS I have used in my case:

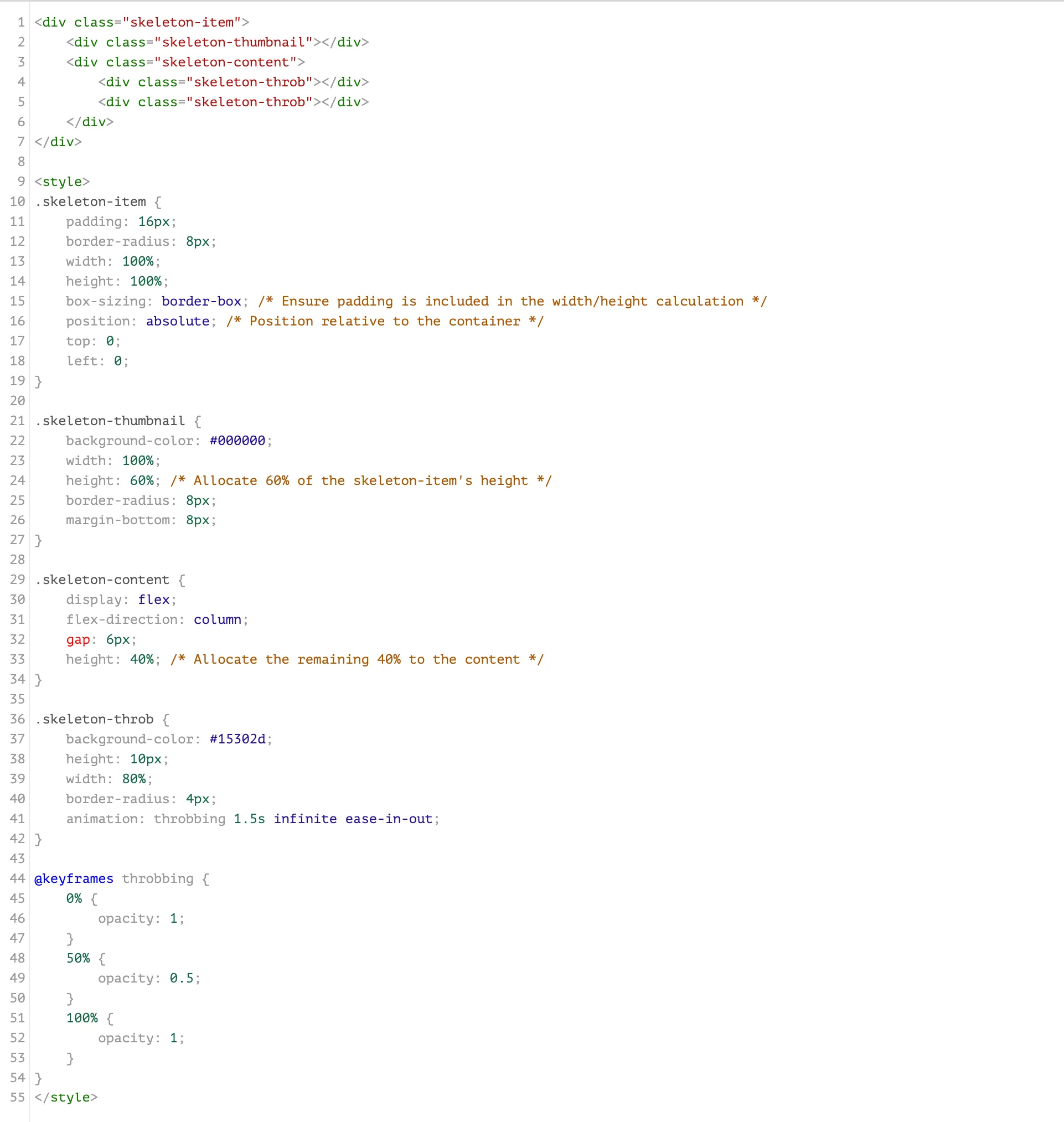

html/css image of skeleton loader

Here is the CSS:

Now you can customise this as per your understanding of HTML and CSS or you can use Chat GPT to modify this as per your repeating group or container.

Basically in my case, I have put placeholders for the image element and 2 text elements

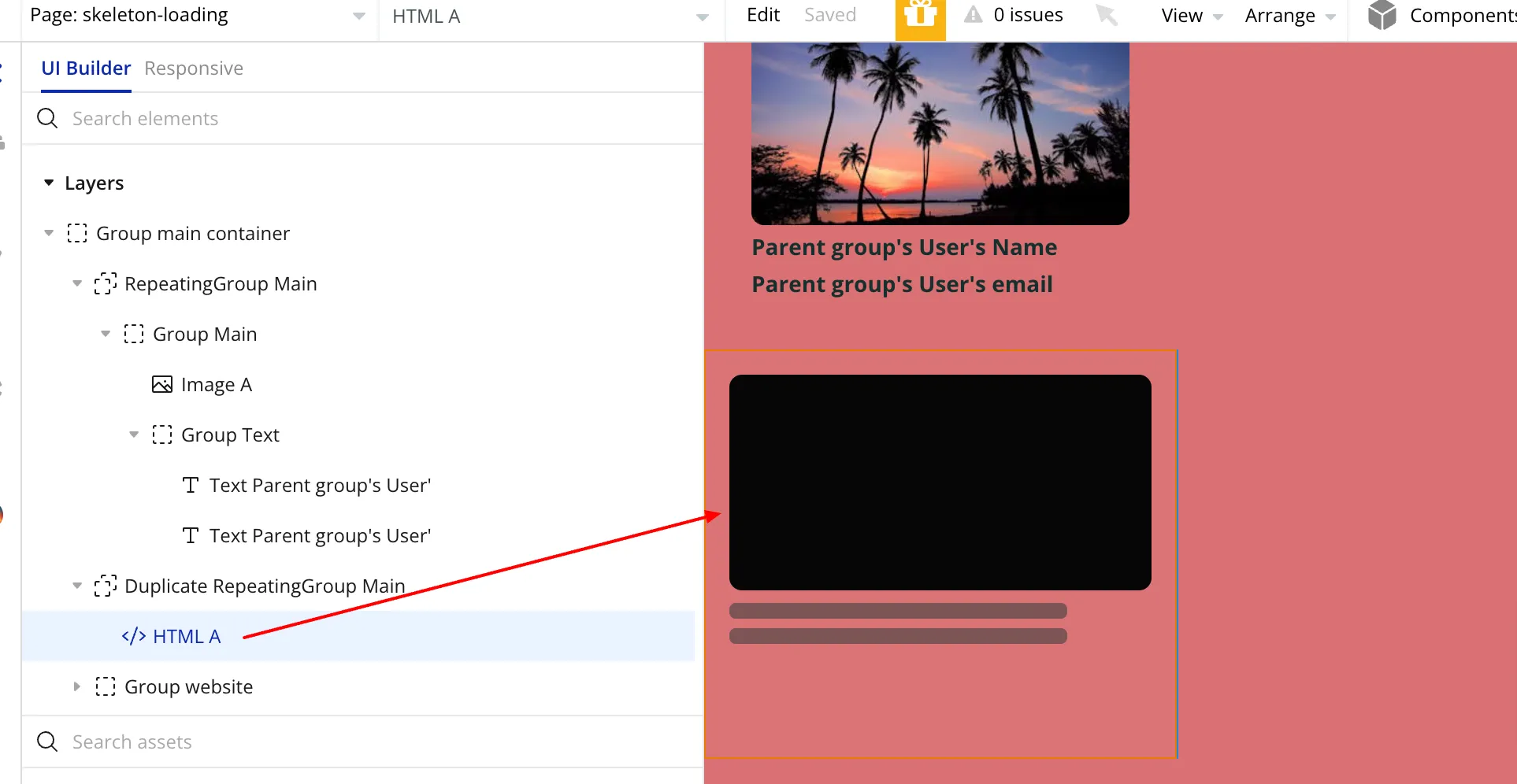

Look of Skeleton CSS in bubble editor

Step 4: Hide & Show condition of output and skeleton loader Repeating Groups

  • Both repeating groups should be ‘collapse when hidden’

  • Duplicate/Skeleton loading repeating group will be visible on the page load

  • Output Repeating Group will not be visible on the page load

  • Duplicate/Skeleton loading repeating group will not be visible when the Output Repeating Group’s data is loaded

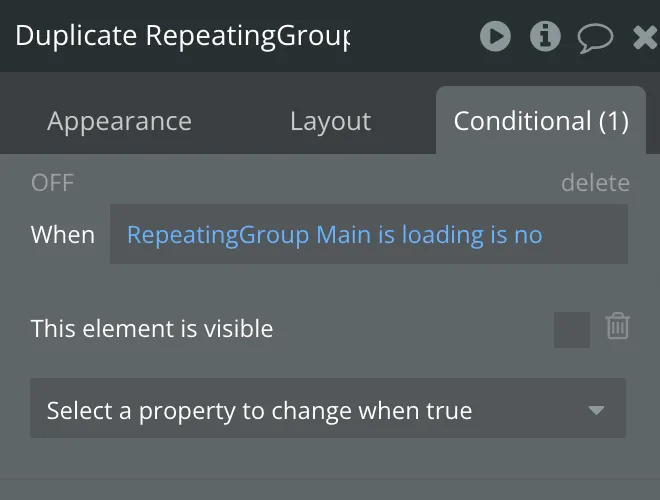

skeleton repeating group condition

  • Output Repeating Group will not be visible when it is loading the data and will be loaded only when its data count is more than 0

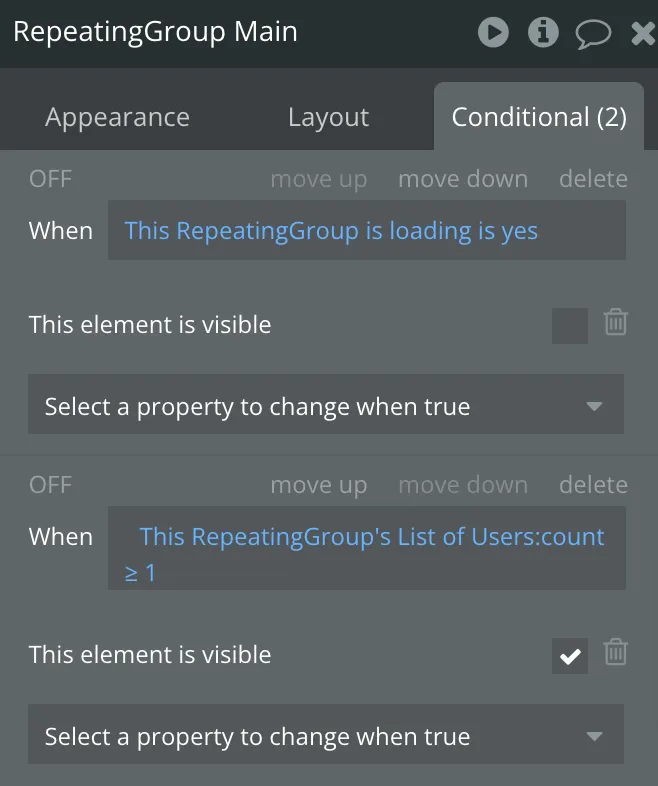

    Main repeating group condition

    And here is how it will look in the end

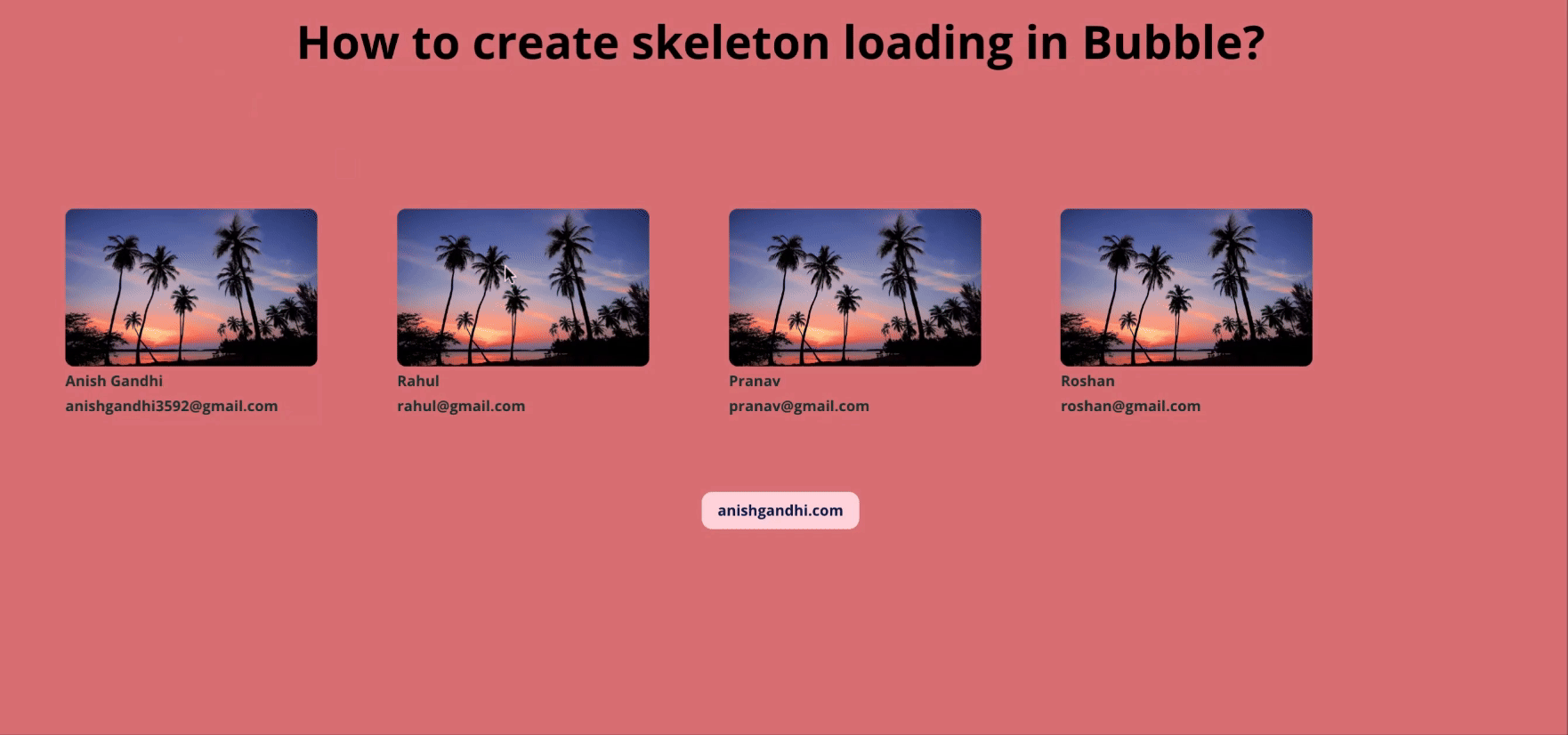

    Skeleton loading in repeating group of bubble

    Step 5: Best Practices to consider for using Skeleton loading

    • Minimal Overhead: Keep your skeleton design simple to ensure it doesn’t impact performance. Avoid too many elements or complex animations.

    • Mobile Optimization: Ensure the skeleton loading screen looks good on mobile devices by testing responsiveness.

    • Consistent User Feedback: Combine skeleton loading with other feedback mechanisms, such as progress bars or subtle loaders for better UX.

With a bit of creativity, you can take this feature to the next level, adding your animations and personal touches. Happy no-coding!
